Introduction to the McCain TMJ Arthroscopy System.

Small Joint Arthroscopy System

 Unique TMJ Arthroscope & Instrument Systems



McCain 1.9mm Arthroscope System (601115)

TRAY DIMENSIONS 1.9MM ARTHROSCOPE: 10.13” X 4.19” X 1.99”

TRAY DIMENSIONS 1.9MM: 13.5” X 7.75” X 1.99”



This system facilitates the following procedures:

  • • Initial puncture

    • Arthroscopic arthrocentesis

    • Lysis and lavage

    • Diagnosis under visualization

    • Deposition of medications

    • Equipment and procedures are demonstrated at training

  • • 1.9mm Arthroscope, 30º, Autoclavable (501200)

    • 1.9mm Warburton Collar-lock Scope Cannula (50mm) (501204)

    • 1.9mm Trocar (501202)

    • 1.9mm Obturator (501203)

    • Fiber Optic Light Cable (2.0mm) (501206)

    • Light Source Adapter, Olympus/ACMI (501207)

    • Light Source Adapter, Storz (501209)

    • Suction Tube (5 French) (501035)

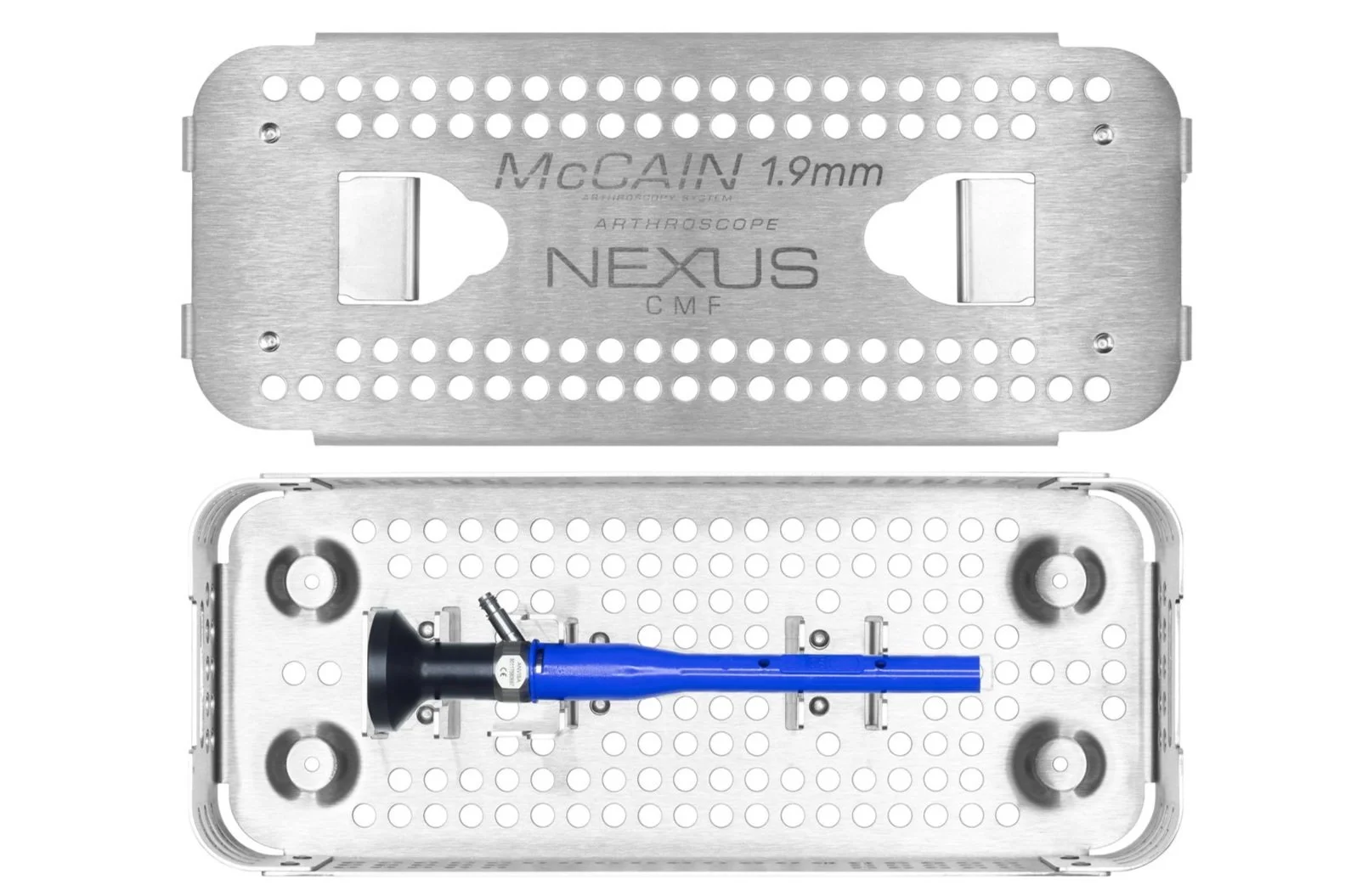

    • McCain 1.9mm Arthroscope Tray (501116)

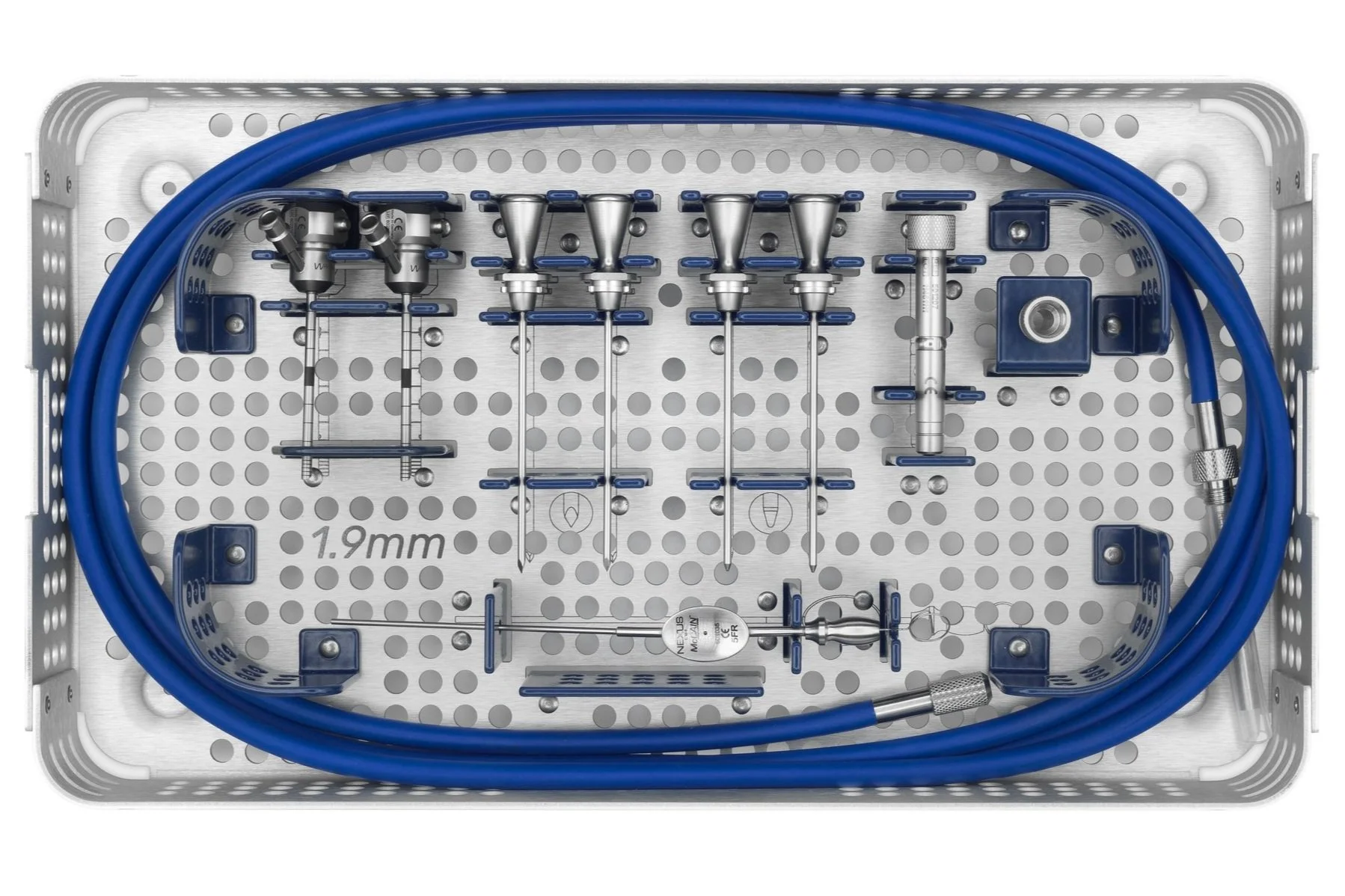

    • McCain 1.9mm Arthroscope Accessory System Tray (501114)

Request Additional Information


McCain 1.8mm Arthroscope System (601003)

TRAY DIMENSIONS 1.8MM: 17” X 9.75” X 1.5”



This system facilitates the following procedures:

  • • Triangulated second puncture

    • Release of adhesions

    • Synovial biopsy

    • Debridement of joint space

    • Disc repositioning

    • Targeted deposition of intra-synovial medications

    • Introduction of thermal devices

    • Equipment & procedures demonstrated at training

  • 1.9mm Scope/Operative Cannula (501201)

    1.9mm Trocar (501202)

    1.9mm Obturator (501203)

    Probe, Straight, Blunt (1.8m) (501004)

    Probe, Curved, Blunt (1.8m) (501005)

    Banana Knife (1.8mm) (501006)

    Scissors, Micro-Style (1.8mm) (501007)

    Laser Fiber Guide (1.8mm) (501008)

    Biopsy Forceps, Serrated (1.8mm) (501009)

    Biopsy Forceps, Micro-Style, Serrated (1.8mm) (501010)

    Tissue Grasping Forceps, Micro-Style, Serrated (1.8mm) (501011)

    Bone Curette (1.8mm) (501012)

    Bone File, Concave, Pull (1.8mm) (501013)

    Bone File, Convex, Push (1.8mm) (501014)

    Golden Retriever (1.8mm) (501020)

    Biopsy Forceps, Ergo-Style, Sharp-Cup (1.8 mm) (501028)

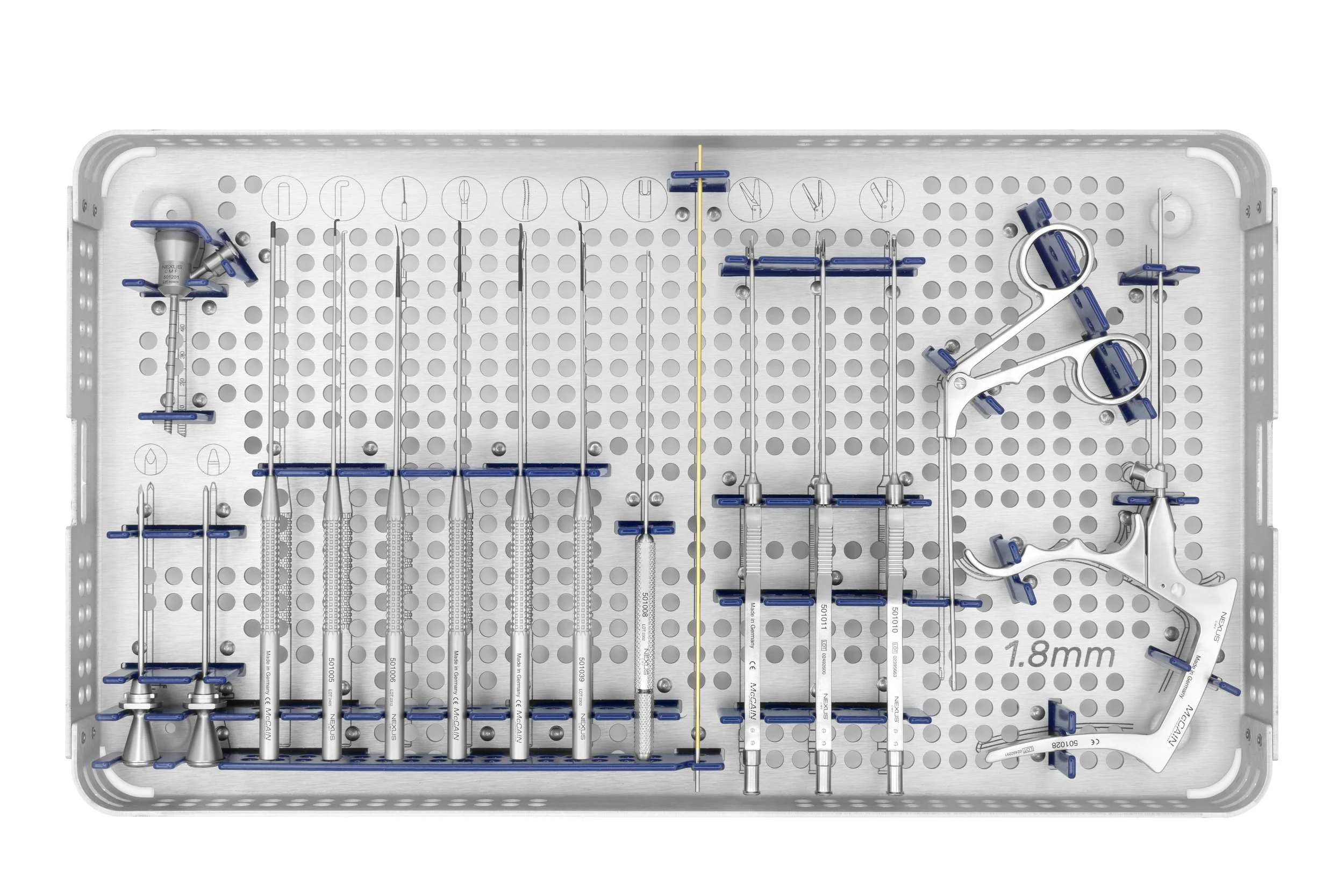

    McCain 1.8mm Arthroscopy System Tray (501105)

Request Additional Information


McCain 2.7mm Arthroscope System (601004)

TRAY DIMENSIONS 2.7MM: 20.6” X 10” X 1.2”



This system facilitates the following procedures:

  • • All procedures listed under 1.8mm system

    • Allows for transition to larger operative instruments to facilitate advanced Level 3 arthroscopy

    • Rotary shavers

    • Advanced debridement

    • Partial and complete discectomy

    • Equipment and procedures are demonstrated at training

  • 2.7mm Operative Cannula (501016)

    2.7mm Trocar (501017)

    2.7mm Obturator (501018)

    Transition System (1.8mm to 2.7mm) (501019)

    Golden Retriever (1.8mm) (501020)

    Probe, Straight, Blunt (2.7mm) (501021)

    Probe, Curved, Blunt (2.7mm) (501022)

    Biopsy Forceps, Sharp-Cup (2.7mm) (501023)

    Bone Curette (2.7mm) (501024)

    Bone File, Concave, Pull (2.7mm) (501025)

    Bone File, Convex, Push (2.7mm) (501026)

    Biopsy Forceps, Ergo-Style, Sharp-Cup (2.7 mm) (501029)

    Banana Knife (2.7mm) (501030)

    Scissors, Micro-Style (2.7mm) (501031)

    Biopsy Forceps, Micro-Style, Serrated (2.7mm) (501032)

    Tissue Grasping Forceps, Micro-Style, Serrated (2.7mm) (501033)

    Laser Fiber Guide (2.7mm) (501034)

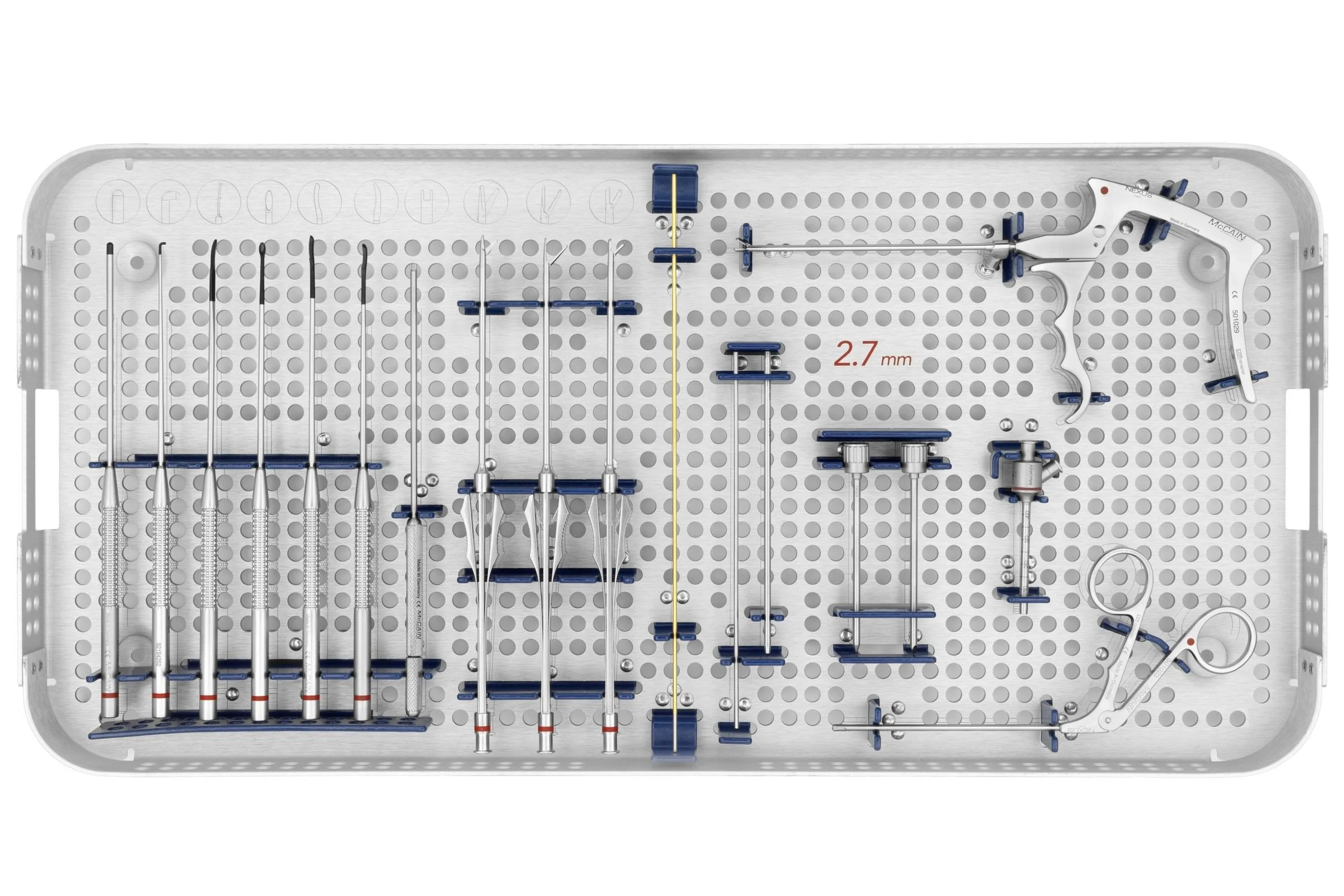

    McCain 2.7mm Arthroscopy System Tray (501106)

Request Additional Information

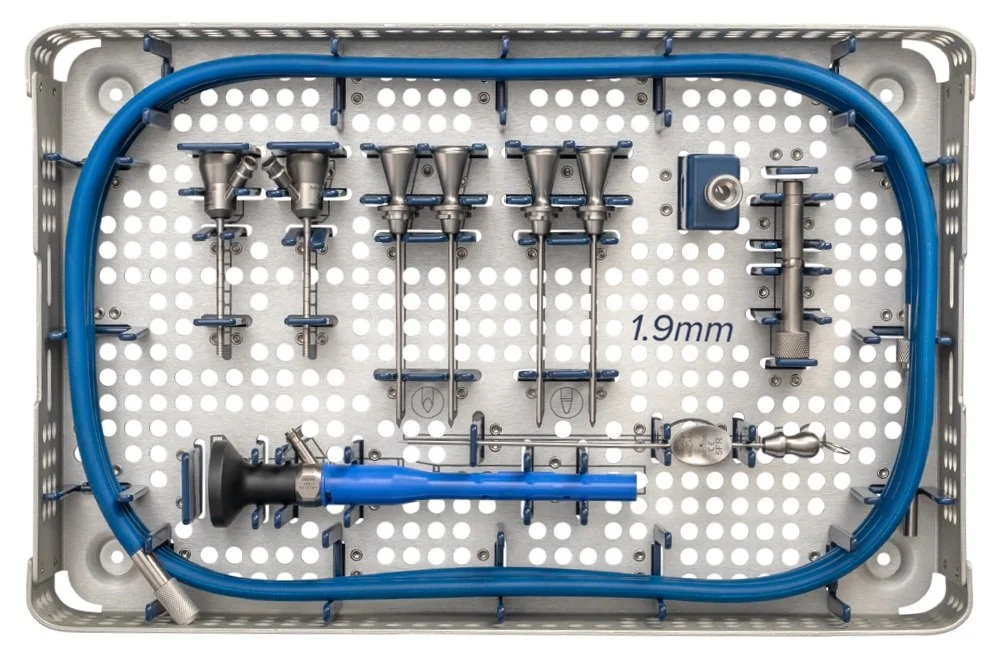

McCain 1.9mm Arthroscope System (601005)

TRAY DIMENSIONS 1.9MM: 13.5” X 7.75” X 1.99”



This system facilitates the following procedures:

  • • Initial puncture

    • Arthroscopic arthrocentesis

    • Lysis and lavage

    • Diagnosis under visualization

    • Deposition of medications

    • Equipment and procedures are demonstrated at training

  • • 1.9mm Arthroscope, 30º, Autoclavable (501200)

    • 1.9mm Warburton Collar-lock Scope Cannula (50mm) (501204)

    • 1.9mm Trocar (501202)

    • 1.9mm Obturator (501203)

    • Fiber Optic Light Cable (2.0mm) (501206)

    • Light Source Adapter, Olympus/ACMI (501207)

    • Light Source Adapter, Storz (501209)

    • Suction Tube (5 French) (501035)

    • McCain 1.9mm Arthroscope Tray (501109)

Request Additional Information

"Thank you Nexus CMF for the opportunity to work with your team of McCain fellows and the excellent Nexus arthroscopy instruments and material . . . and [your] help [to] spread the knowledge to many maxillofacial surgeons." — Dr. Patricia Radiac, Sao Paulo, Brazil

Instruments Unique to TMJ Arthroscopy



1.9mm Arthroscope, 30° Autoclavable (501200)

Arthroscope Specifications:

Working Length: 63.1mm

Angled Light Post Diameter: 5mm

Light Post: 55°

Diameter: 1.9mm

Field of View: 65°

Direction of View: 30°

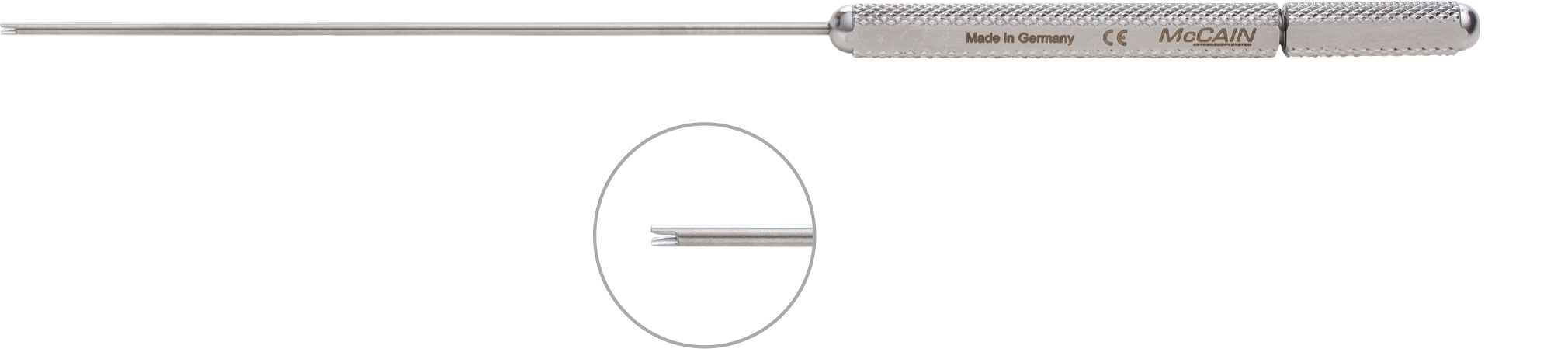

Laser Fiber Guide  (1.8MM)

Compatible with 550 µm Laser Fiber (501008)

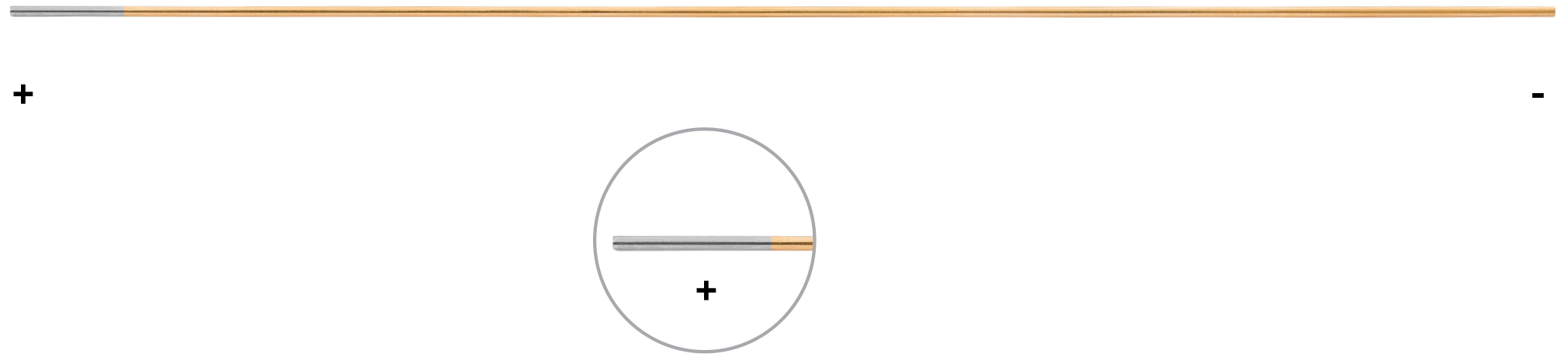

Golden Retriever (1.8MM)

Magnetized (501020)



1.9mm Warburton Collar-Lock Scope Cannula (50MM), (501204)

Disposables & Additional Products

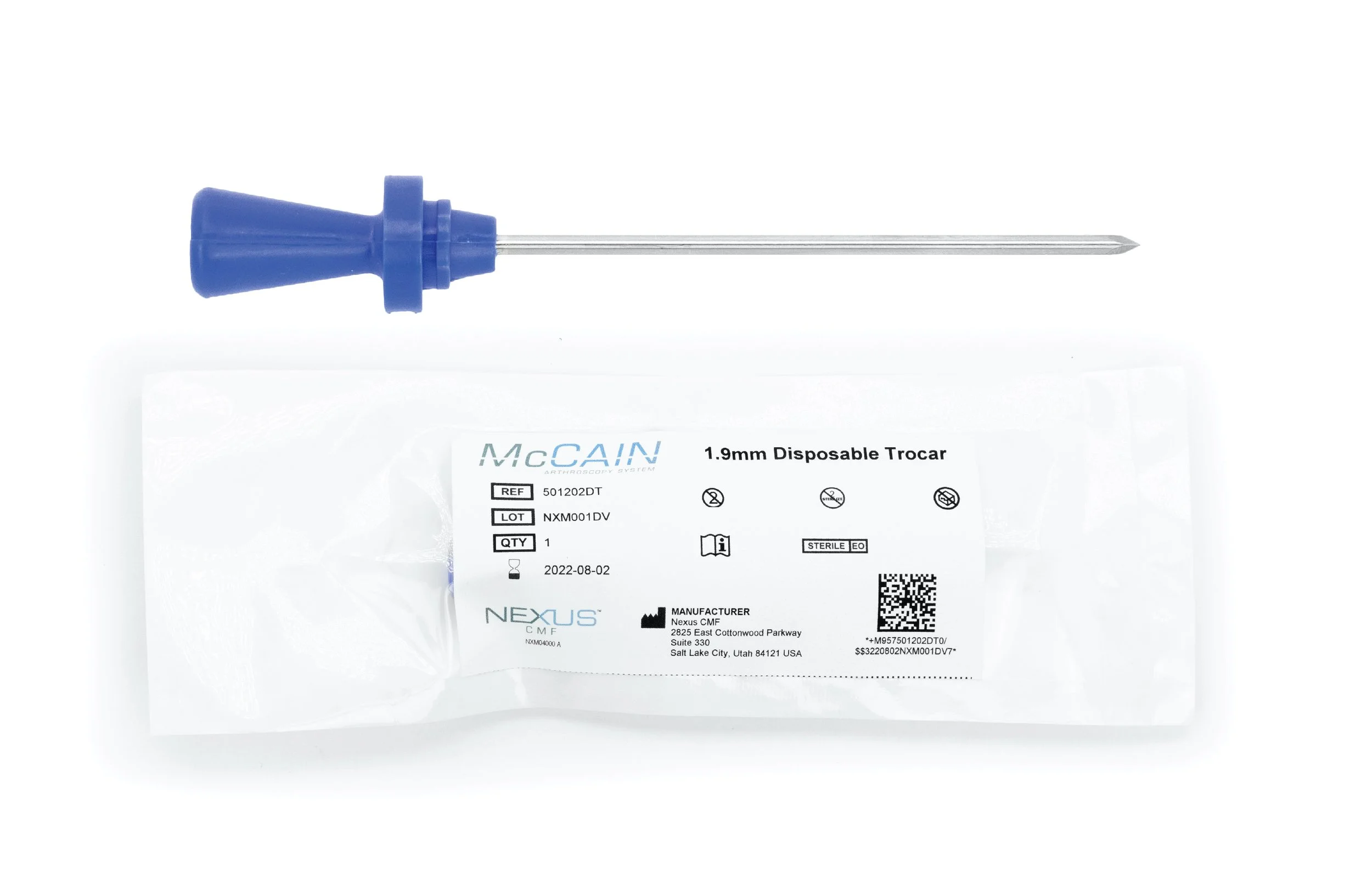

1.9mm Disposable Trocar (501202DT)



Sharp single-use disposable trocar. Compatible with 1.9mm Warburton Collar-Lock Scope Cannula (501204) and the 1.9mm Scope/Operative Cannula (501201).

Available in a box of 10.

PRODUCT INFORMATION


TMJ Drape/Fluid Collection Procedure Kit (501309)



This all-in-one convenient TMJ Drape/Fluid Collection Procedure Kit includes a customized fluid collection pouch, as well as a full body drape and unique head wrapping system. It also includes a table covering and a 3-way stopcock.



TMJ Arthroscopic Practice Head (501306)



This model simulates a very realistic temporomandibular joint. Allowing for the practice of level I, II and III procedures, triangulation, scope, surgical instrument manipulation and joint identification.

Request Additional Information
